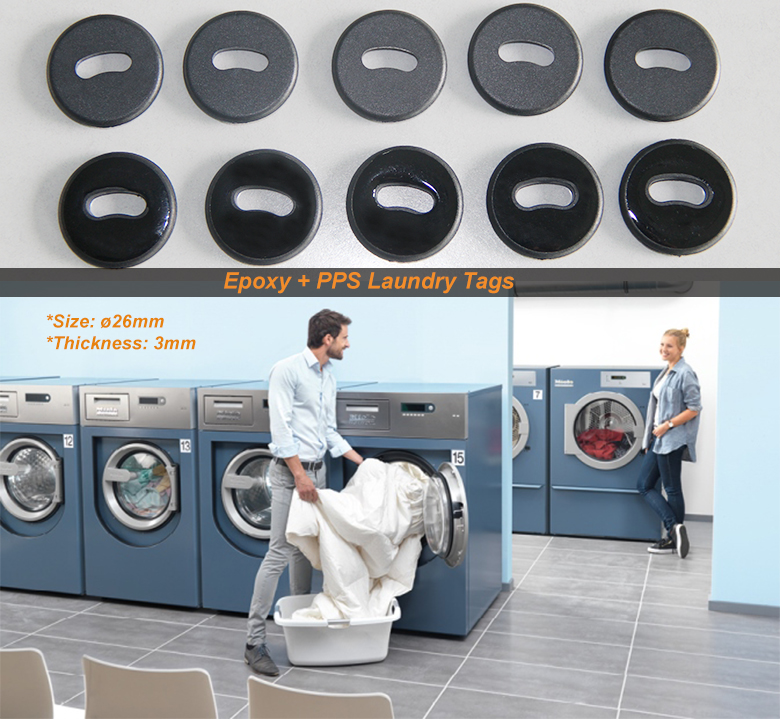

L03 RFID PPS LAUNDRY TAGS

LF/HF/UHF PASSIVE LAUNDRY TAGS

  • Dimension: Φ26mm,
  • Thickness: 3mm,
  • Material: Epoxy front + PPS back
  • Difference: Crescent-shaped hole in the middle
  • Chip Options: TK4100, EM4200, EM4305, T5577, F08,  NXP MIFARE S50/S70,  NTAG213/215/216,  UCODE 9, etc
  • Typical required activation field strength to read/write (at +25°C): 112 dBμA/m/ 115 dBμA/m
  • Typical programming cycles (at +25°C): 100,000 times
  • Data retention time (at +55°C): > 10 years
  • Simultaneous Identification of Tags: Up to 50 tags per second (reader/antenna dependent)
  • Protection Class: IP 68(condition: water pressure 45bar, 10h)
  • Operating temperature: -25°C to +90°C
  • Mechanical Stability: Axial compression strength: 1000N, Radial compression strength: 500N
  • Chemical Resistance: Typical chemicals used in laundry and dry-cleaning processes
  • Application: Linens/ Pallets/ Canvas bags, Used in hotel sheet/ Attached to textile Work clothing, etc
  • See the difference with L04
